Melodynamic (Dynamic Microphone) 75-A

Melodynamic 75-A; Melodium; Paris (ID = 1372753) Microphone/PU Melodynamic 75-A; Melodium; Paris (ID = 1276104) Microphone/PU
Melodynamic 75-A; Melodium; Paris (ID = 1295239) Microphone/PU Melodynamic 75-A; Melodium; Paris (ID = 282460) Microphone/PU
Melodynamic 75-A; Melodium; Paris (ID = 1977547) Microphone/PU Melodynamic 75-A; Melodium; Paris (ID = 1977548) Microphone/PU
Use red slider bar for more.

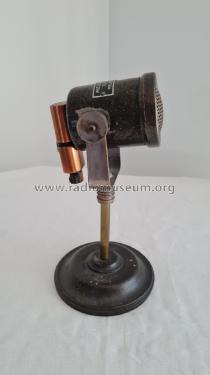

Melodynamic 75-A; Melodium; Paris (ID = 1372753) Microphone/PU
Melodium; Paris: Melodynamic 75-A [Microphone/PU] ID = 1372753 875x1020
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodynamic (Dynamic Microphone) 75-A, Melodium; Paris:
F_Mélodium_75A

Country:  France
Manufacturer / Brand:  Melodium; Paris
Year: 1948–1958 perfect model Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Melodynamic 75-A - Melodium; Paris
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 85 x 155 x 0 mm / 3.3 x 6.1 x 0 inch
Notes

Microphone dynamique. Diaphragme en duralumin couplé à bobine de pas plus de 30 milligrammes.

  • Impédance de sortie: 10 ohms ± 10% à 800 pps.
  • Fréquences: 50 à 10.000 pps.
  • Niveau de sortie: -55 dB (pression 10 baries), circuit ouvert, référence 1 milliwatt
  • Dimensions: H 155 mm, L 60 mm, Épaisseur 85 mm.

Sortie sur trois bornes (borne centrale à la masse, les autres au circuit modulé). Transformateur de liaison type E80FS (rapport 1/80) ou E40FS (rapport 1/40) recommandé.


Dynamic (studio) microphone.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (La Television Pratique 1948)
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) -- Original prospect or advert (Le Haut-Parleur, No 1012, Déc. 1958)
