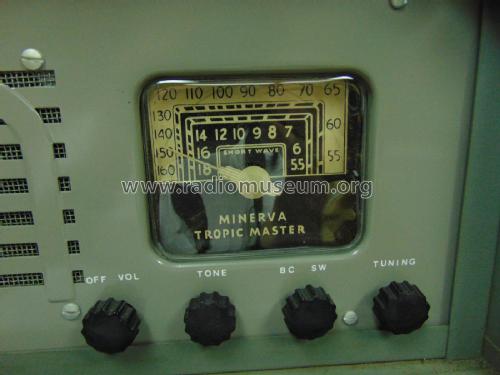

Tropic Master W117 early 50L6; 25Z6

Minerva Radio Co.(post WW2); New York (NY)

  • Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 69041

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tropic Master W117 early [50L6; 25Z6] - Minerva Radio Co.post WW2; New
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 14 x 8 x 8.5 inch / 356 x 203 x 216 mm
  • Notes
  • "Portable" for mains only! (Truppenbetreuungsempfänger für die US Army und Navy, komplettes Stahlblechgehäuse, Gegentaktendstufe) .
    Riders schematic is in error: Both 50L6 filaments are shown in series but should be in parallel (2x 150 mA to suit the complete 300 mA series circuitry), as correctly shown in SAM's.
    In case of a broken 50L6 filament the other tube will almost immediately burn out. This might have led to another variant (2) using two 25L6 with the filaments in series. See there.
  • Net weight (2.2 lb = 1 kg)
  • 22 lb 0 oz (22 lb) / 9.988 kg
  • Price in first year of sale
  • 75.00 $
  • External source of data
  • Volker Jeschkeit
  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
