• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1998 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 216835

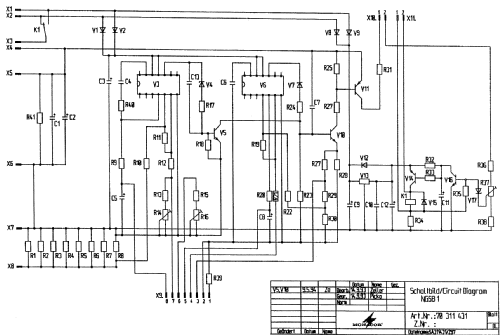

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC547 BC547 BC547 BC557 BD244 2N3055 µA723 µA723 µA78xx

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Labor-Netzgerät PS-303 [6 Transistoren] - Monacor, Bremen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 235 x 100 x 170 mm / 9.3 x 3.9 x 6.7 inch

• Notes
• Labor-Netzgerät 0-30 V, 0-3 A, Tischmodell mit analoger Strom-und Spannungsmessung.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
