• Country
• Germany

• Manufacturer / Brand
• Monacor, Bremen

• Year
• 1969 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 79797

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SB186 2SB186 2SB186 2SB186 2SB405 2SB405 2SB405 2SB405

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

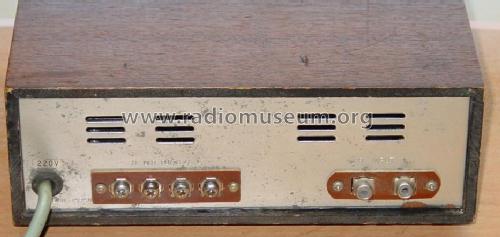

• Model: Stereophonic Amplifier SA-616 [2x 5 W] - Monacor, Bremen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 220 x 85 x 140 mm / 8.7 x 3.3 x 5.5 inch

• Notes
• Ein Eingang, Lautstärke getrennt regelbar, Umschalter für Stereo, Mono, Revers.
  Es gibt diese Verstärkertype SA-616 auch mit 2x 10 W.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
