AR-4

AR-4 ; Monitoradio; (ID = 531025) Radio

AR-4 ; Monitoradio; (ID = 531026) Radio

AR-4 ; Monitoradio; (ID = 531027) Radio

AR-4 ; Monitoradio; (ID = 531028) Radio
AR-4 ; Monitoradio; (ID = 588498) Radio AR-4 ; Monitoradio; (ID = 588501) Radio
AR-4 ; Monitoradio; (ID = 588502) Radio AR-4 ; Monitoradio; (ID = 588500) Radio
AR-4 ; Monitoradio; (ID = 531024) Radio AR-4 ; Monitoradio; (ID = 588503) Radio
AR-4 ; Monitoradio; (ID = 2072251) Radio AR-4 ; Monitoradio; (ID = 2072252) Radio
Use red slider bar for more.
AR-4 ; Monitoradio; (ID = 588498) Radio
Monitoradio;: AR-4 [Radio] ID = 588498 884x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-4, Monitoradio; Indianapolis (IN)

Country:  United States of America (USA)
Manufacturer / Brand:  Monitoradio; Indianapolis (IN)
alternative name

Radio Apparatus Corp.; Indianap.
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12AT7 6BJ6 6BJ6 12AX7 50C5 35W4
Main principle Super-Heterodyne (Super in general); ZF/IF 10700 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: AR-4 - Monitoradio; Indianapolis IN
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10.5 x 7 x 6.5 inch / 267 x 178 x 165 mm
Notes The Monitoradio Model AR-4 is an AC/DC Operated 6 Tube FM Communications Receiver.
Tuning Range 108 - 136mc.
Price in first year of sale 66.50 $

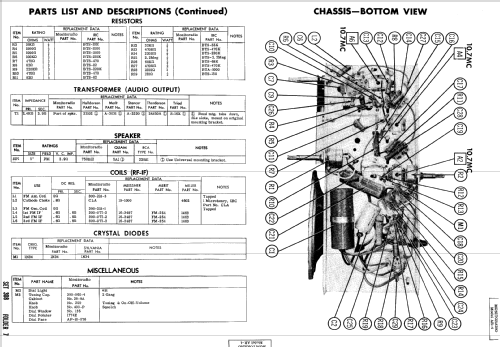

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 3-56, Set 308, Folder 7)
Literature/Schematics (2) Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1954/55, page 664.)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Monitoradio; Indianapolis (IN)
Here you find 23 models, 16 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
