• Year
  • 1950–1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 91683

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

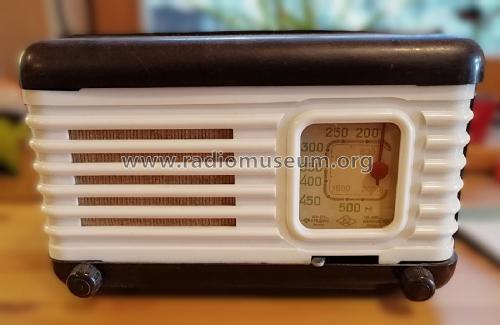

  • Model: Moskvič V - В [variant 2] - Moscow TEMP Radio Works/Plant
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 290 x 185 x 140 mm / 11.4 x 7.3 x 5.5 inch
  • Notes
  • Tube 6a10, later changed to 6a7.

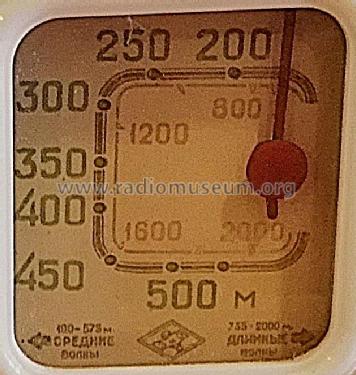

    One model name and same case design at all time. In time varied only picture on radio scale glass.
    Radio set "Moskvich B" for first was named "Vesna"(BECHA in russian)(see in RMorg). First letter "B" stay in next model name. Model was manufaktured in 5 Russia radio factories, most popular radio. "Moskvich B" produced in: Voronezh Elektrosignal Works, ARZ,Moscow Krasny Oktyabr Works, Sarapoul Radio Works).
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Source of data
  • -- Schematic
  • Mentioned in
  • - - Data from my own collection (E.A.Levitin "Radio sets" Moscow 1960)
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
