VT-71 TS-4D; Motorola Inc.; (ID = 726006) Television

VT-71 TS-4D; Motorola Inc.; (ID = 726007) Television

VT-71 TS-4D; Motorola Inc.; (ID = 726012) Television

VT-71 TS-4D; Motorola Inc.; (ID = 726013) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725981) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725982) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725983) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725984) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725985) Television

VT-71 TS-4D; Motorola Inc.; (ID = 725986) Television
VT-71 TS-4D; Motorola Inc.; (ID = 245414) Television VT-71 TS-4D; Motorola Inc.; (ID = 445230) Television
VT-71 TS-4D; Motorola Inc.; (ID = 1438656) Television VT-71 TS-4D; Motorola Inc.; (ID = 1482308) Television
VT-71 TS-4D; Motorola Inc.; (ID = 1630211) Television VT-71 TS-4D; Motorola Inc.; (ID = 1630214) Television
Use red slider bar for more.
VT-71 TS-4D; Motorola Inc.; (ID = 245414) Television
Motorola Inc.;: VT-71 TS-4D [Television] ID = 245414 933x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model VT-71 TS-4D, Motorola Inc.; Schaumburg (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Motorola Inc.; Schaumburg (IL)
alternative name

Galvin Mfg. Co. ; Chicago
Year: 1947–1949 Type: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6AG5 6AU6 12SN7GT 25L6GT 12AT7 6SQ7 6AL5 6SL7GT 1B3GT 7JP4
Principle Superhet with RF-stage; ZF/IF 25000 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: VT-71 TS-4D - Motorola Inc.; Schaumburg IL
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 17 x 9.5 x 16.5 inch / 432 x 241 x 419 mm
Notes

7" electrostatic deflection CRT. 13 channel! US-VHF Tuner. First US TV sold below 200USD. Chassis Numbers TS-4, TS-4G, TS-4H and TS-4J for the same type known. Cabinet colors available: mahogany and blond. Also walnut.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 179.00 $
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Photofact Folder, Howard W. SAMS (493-16 Set 55 Folder 16)

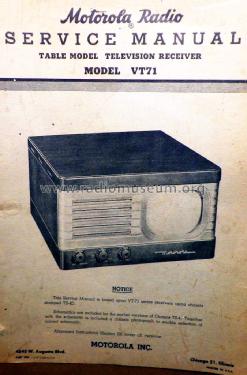

Literature/Schematics (1) Rider Television Manual, Vol. 1

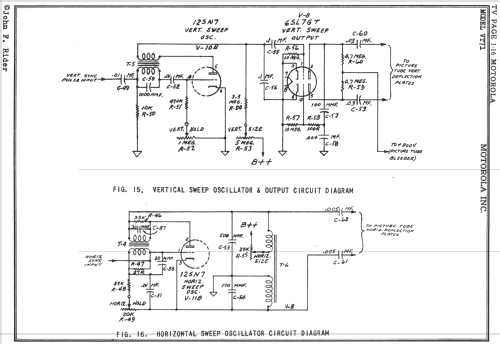

Literature/Schematics (3) Motorola Folder D1237 for 1949.

Model page created by a member from A. See "Data change" for further contributors.
