A192; Murphy Radio Ltd.; (ID = 642671) Radio
Murphy Radio Ltd.;: A192 [Radio] ID = 642671 933x670
Select picture or schematic to display from thumbnails on the right and click for download.
For model A192, Murphy Radio Ltd.; Welwyn Garden City:
Bild wurde April 2009 in Peru bei Freunden aufgenommen

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1953 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 10C1 10P14 U404 10LD11 10F9
Principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 190-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: A192 - Murphy Radio Ltd.; Welwyn
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 370 x 260 x 190 mm / 14.6 x 10.2 x 7.5 inch

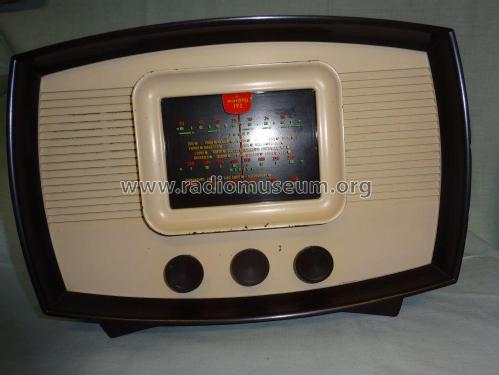

Notes Typical of Murphy's quirky design, this nearly normal rounded box is brought to life with the tuning window bezel. Designed by David Ogle, most famous for the design of the Bush TR82 portable transistor radio of the late 1950's. The main drawback of this design is that the speaker must be small enough to fit on one side of the central tuning scale. A trawler band version (A192T) was also available.
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 18.00 GBP
Collectors' prices
Literature/Schematics (1) Murphy Service Manual

Model page created by Petros Tsirvoulis. See "Data change" for further contributors.
