Kondensatormikrofonkapsel M55K

ID = 108965

{gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "89 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:[br]eigenes Verkaufsbild ,, www.antik-technik.de ,,", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K uploaded by Peter Wölfel (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "82 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:[br]eigenes Verkaufsbild ,, www.antik-technik.de ,,", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K uploaded by Peter Wölfel (2)", ite: "2"} {gbW: "525", gbH: "700", mW: "281", mH: "375", kb: "27 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K from Jürgen Tiedmann (1)", ite: "1"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "65 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:[br]eigenes Verkaufsbild ,, www.antik-technik.de ,,", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K uploaded by Peter Wölfel (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "94 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:[br]eigenes Verkaufsbild ,, www.antik-technik.de ,,", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K uploaded by Peter Wölfel (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "63 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:[br]eigenes Verkaufsbild ,, www.antik-technik.de ,,", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K uploaded by Peter Wölfel (2)", ite: "2"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "38 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K from Jürgen Tiedmann (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "24 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K from Jürgen Tiedmann (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "38 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K from Jürgen Tiedmann (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "33 KB", notes: "For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell", title: "Neumann & Co, Georg; Kondensatormikrofonkapsel M55K from Jürgen Tiedmann (1)", ite: "1"}

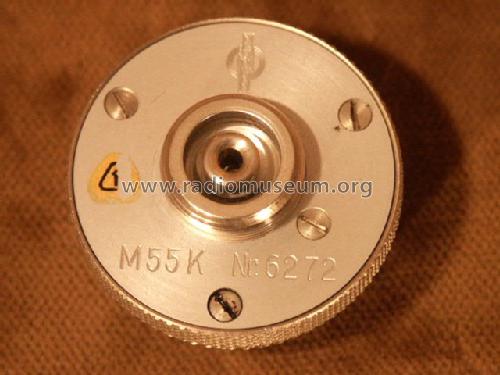

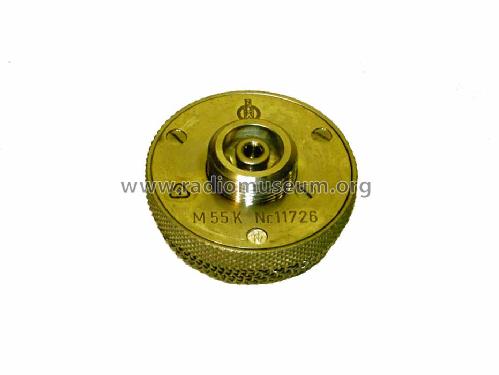

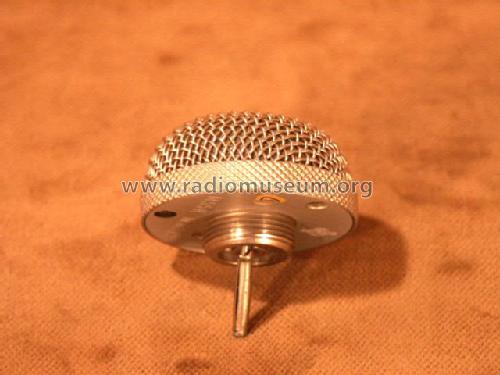

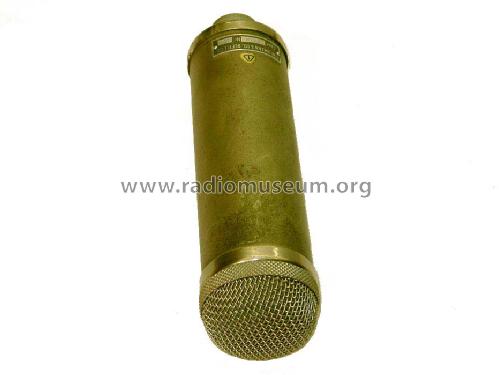

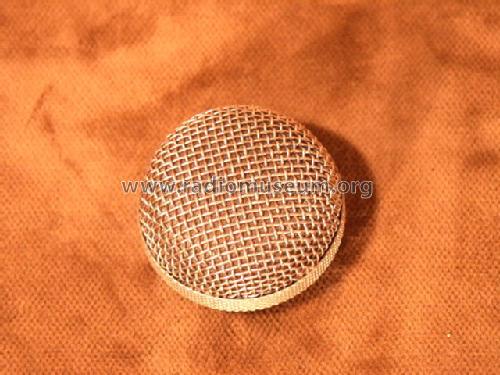

Kondensatormikrofonkapsel M55K; Neumann & Co, Georg; (ID = 300177) Microphone

Neumann & Co, Georg;: Kondensatormikrofonkapsel M55K [Microphone] ID = 300177 640x480

For model Kondensatormikrofonkapsel M55K, Neumann & Co, Georg; Gefell:
eigenes Verkaufsbild ,, www.antik-technik.de ,,

Country:

Germany

Manufacturer/Brand:

Neumann & Co, Georg; Gefell

Year: 1955 ?

Type: Microphone or Pick-up

Wave bands	- without
Details
Power type and voltage	No Power needed
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: Kondensatormikrofonkapsel M55K - Neumann & Co, Georg; Gefell
Material	Metal case
Dimensions (WHD)	42 x 42 x 26 mm / 1.7 x 1.7 x 1 inch
Notes	Kondensator-Mikrofonkapsel ist ein Druckempfänger mit kugelförmiger Charakteristik. Sie ist auf den Mikrofonvorverstärker CMV563 aufschraubbar. Frequenzgang 30...20000 Hz, Kapazität ca. 70 pF.
Net weight (2.2 lb = 1 kg)	0.1 kg / 0 lb 3.5 oz (0.22 lb)
Collectors' prices	22 Collector prices (for members Radiomuseum.org)
Mentioned in	-- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.

All listed radios etc. from Neumann & Co, Georg; Gefell
Here you find 44 models, 43 with images and 10 with schematics.

Collection of Jürgen Tiedmann (D)
