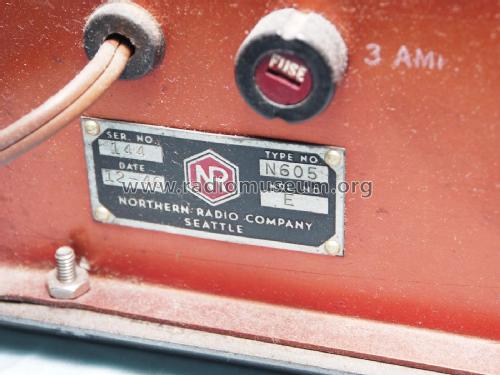

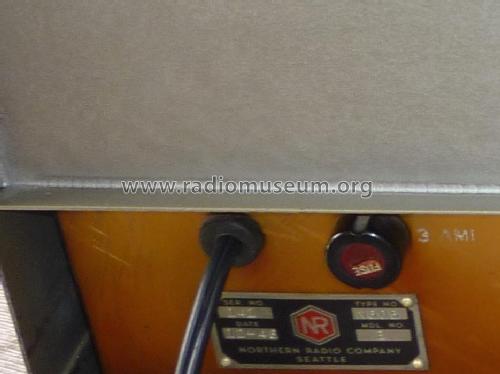

N605-E
Northern Radio Co.; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Northern Radio Co.; New York
- Year
- 1948 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 49745
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 7 W (unknown quality)
- from Radiomuseum.org
- Model: N605-E - Northern Radio Co.; New York
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17.8 x 9.5 x 14.9 inch / 452 x 241 x 378 mm
- Notes
- Frequency Ranges:
BC band - 550 to 1310 kc
SW1 - 1.28 to 3.16 mc
SW2 - 2.92 to 6.8 mc
SW3 - 6.45 to 15.1 mc
SW4 - 14.7 to 33.5 mc
- Net weight (2.2 lb = 1 kg)
- 20.4 kg / 44 lb 14.9 oz (44.934 lb)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
