Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484090) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484091) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484092) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484093) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484094) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484096) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484084) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484085) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484086) Radio

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 484087) Radio
Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 75630) Radio Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 106645) Radio
Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 202099) Radio Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 202102) Radio
Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 202104) Radio Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 532697) Radio
Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 532698) Radio Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 1259354) Radio
Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 1259355) Radio Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 1259356) Radio
Use red slider bar for more.

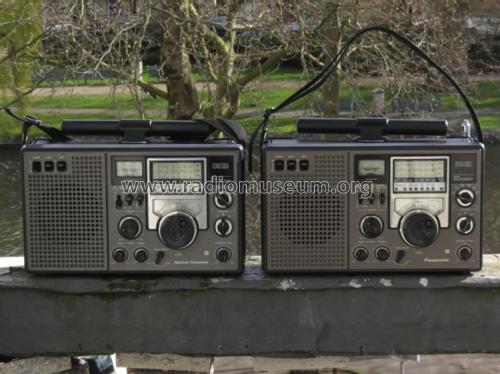

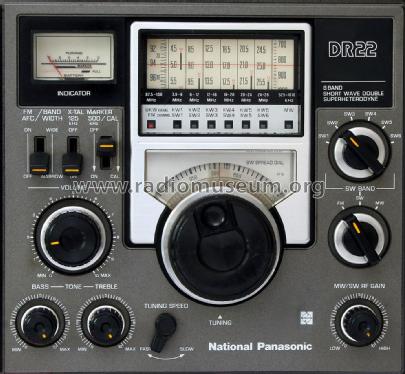

Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS; Panasonic, (ID = 75630) Radio
Panasonic,: Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS [Radio] ID = 75630 933x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1977 ? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Superhet, double/triple conversion
Wave bands Broadcast, more than 2 SW bands plus FM.
Details
Power type and voltage Line / Batteries (any type) / 110-125; 220-240 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Panasonic DR22 8-Band Short Wave Double Superheterodyne RF-2200BS - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 320 x 225 x 100 mm / 12.6 x 8.9 x 3.9 inch
Notes

Shortwave coverage 3900 - 28000 kHz, AM/SSB (BFO), FM on VHF. Analog frequency readout, built in calibrator, rotatable BC-antenna.

Sold in USA as RF-2200 and in Japan as Cougar 2200.

Net weight (2.2 lb = 1 kg) 7 lb 0 oz (7 lb) / 3.178 kg
Collectors' prices

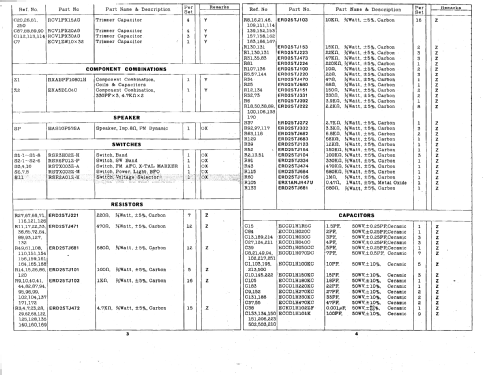

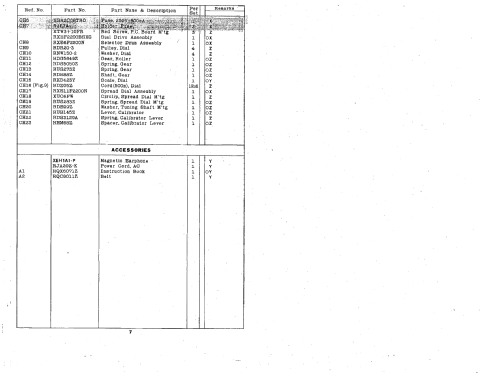

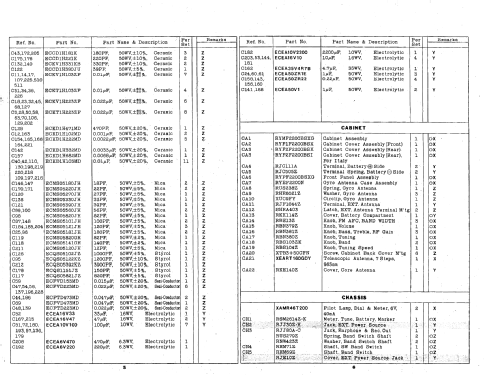

Literature/Schematics (1) -- Schematic

Model page created by Martin Bösch. See "Data change" for further contributors.

All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 1536 models, 1304 with images and 272 with schematics.



rmXorg
