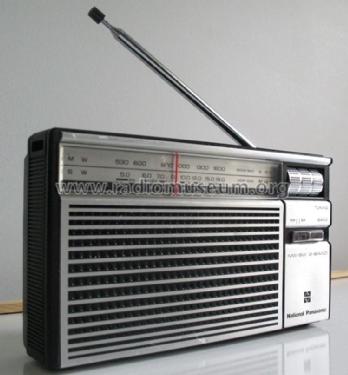

National Panasonic 2-Band R-218R
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1980–1982
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166805
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
eBay Item Number: 360412435844
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / D: 2 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Power out
- 0.25 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic 2-Band R-218R - Panasonic, Matsushita,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 115 x 50 mm / 7.9 x 4.5 x 2 inch
- Notes
-
Has an external earphone socket. Tunes MW 525-1605 kHz and SW 4.75-18 MHz
This model sold in Australia between 1980 & 1982 for $26.
Similar models:
- Net weight (2.2 lb = 1 kg)
- 0.550 kg / 1 lb 3.4 oz (1.211 lb)
- Mentioned in
- Mingay's Price Service (Aug 1980 to Aug 1982.)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Roger Brinkman. See "Data change" for further contributors.
- Other Models
-
Here you find 3131 models, 2915 with images and 651 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Collections
The model National Panasonic 2-Band is part of the collections of the following members.
Forum contributions about this model: Panasonic,: National Panasonic 2-Band R-218R
Threads: 1 | Posts: 1
Hello, I have another radio, Flyer 8886, very similar to this one (but the Flyer is AM/FM).
Because the mounting scheme of the tuning wire is the same, if you are interested in it, you can see my 5 photo I upload today in the "Flyer 8886 Radiomuseum page".
Hope this help some people: in fact there are no mounting scheme in the service manual of the R-218R.
Davide Tambuchi, 15.Dec.21
