RX-ES30

RX-ES30; Panasonic, (ID = 576018) Radio RX-ES30; Panasonic, (ID = 576017) Radio
RX-ES30; Panasonic, (ID = 576019) Radio RX-ES30; Panasonic, (ID = 576020) Radio
RX-ES30; Panasonic, (ID = 576022) Radio RX-ES30; Panasonic, (ID = 576172) Radio
RX-ES30; Panasonic, (ID = 576181) Radio RX-ES30; Panasonic, (ID = 576313) Radio
Use red slider bar for more.

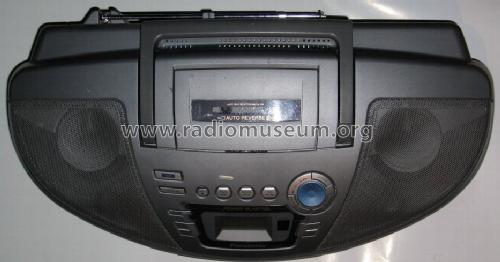

RX-ES30; Panasonic, (ID = 576018) Radio
Panasonic,: RX-ES30 [Radio] ID = 576018 933x489
Select picture or schematic to display from thumbnails on the right and click for download.
For model RX-ES30, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1998 ? Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details CD-player or -equipment (audio)
Power type and voltage Line / Batteries (any type) / 230-240/ 8 ×1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 8 cm = 3.1 inch
Power out 20 W (unknown quality)
from Radiomuseum.org Model: RX-ES30 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 521 x 146 x 270 mm / 20.5 x 5.7 x 10.6 inch
Notes Memory battery: 4×1,5 V. Cassette: 50-13 000 Hz. Ext. Jack: Phones 3,5 mm, 16-32 Ohm. Remote control.
Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
