Liniplex F2

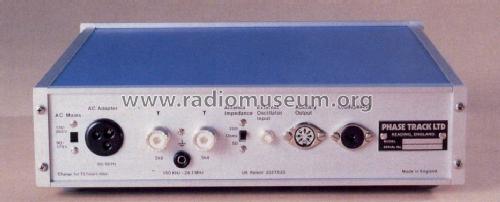

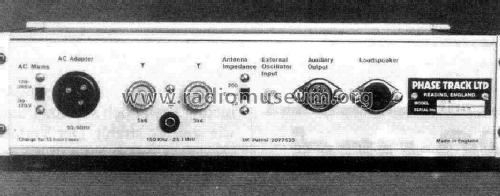

Liniplex F2; Phase Track Ltd., (ID = 440246) Receiver-C Liniplex F2; Phase Track Ltd., (ID = 440247) Receiver-C
Liniplex F2; Phase Track Ltd., (ID = 767486) Receiver-C Liniplex F2; Phase Track Ltd., (ID = 767487) Receiver-C
Use red slider bar for more.
Liniplex F2; Phase Track Ltd., (ID = 440246) Receiver-C
Phase Track Ltd.,: Liniplex F2 [Receiver-C] ID = 440246 933x307
Select picture or schematic to display from thumbnails on the right and click for download.
For model Liniplex F2, Phase Track Ltd., Reading:
Prospektbild

Country:  Great Britain (UK)
Manufacturer / Brand:  Phase Track Ltd., Reading
Year: 1988 Type: Communication/Commercial Receiver (also Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Superhet, double/triple conversion; ZF/IF 35400 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 90-170 / 170-265 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Liniplex F2 - Phase Track Ltd., Reading
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 288 x 72 x 280 mm / 11.3 x 2.8 x 11 inch
Notes Fixed frequency receiver covers eight frequencies in the 150 kHz - 26,1 MHz range, uses crystals or an external oscillator signal 35,3995 kHz higher the the desired receiving frequency, AM, SSB.
IF bandwidth (-3/-60db) 3,4/6,5 kHz, switchable sidebands, S-meter.
Can be controlled by external Liniplex OSC-1 synthesizer.
Has been in use for crystal controlled fixed frequency reception e.g. of the BBC World Serve channels, also for rebroadcasting.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 2,301.00 DM
Source of data -- Collector info (Sammler)
Mentioned in see funk 5.1988 pp30-33

Model page created by Martin Bösch. See "Data change" for further contributors.

All listed radios etc. from Phase Track Ltd., Reading
Here you find 2 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




Forum contributions about this model
Phase Track Ltd.,: Liniplex F2
Threads: 1 | Posts: 1
Hits: 806     Replies: 0
phasetrack: F2 (F 2); Liniplex
Martin Bösch
20.May.10
  1

In their prospect, Phase Track states that Liniplex receivers are used by the British Forces Boradcasting Service for "Off Air" broadcast relays of the World Service in the Falklands, Belize, Gibraltar, Cyprus, Hong Kong and Nepal.

Off course, these "Off Air" relays probably have been moved to satellite and internet streaming services to serve remaining local BFBS stations.

Kind regards Martin Boesch
