• Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51075

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW), Police, sometimes also early TV (75-200m).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: B950 53-950 Code 121 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Color: Brown - Ivory.

    Special services: 1700 kHz to 3400 kHz. Range switch at the back side.
    Power Consumption  30 Watts.



  • External source of data
  • Ernst Erb
  • Circuit diagram reference

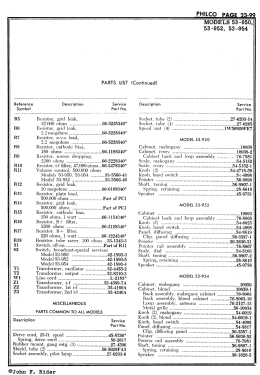

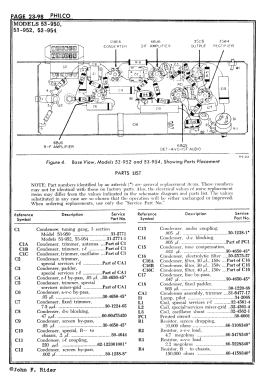

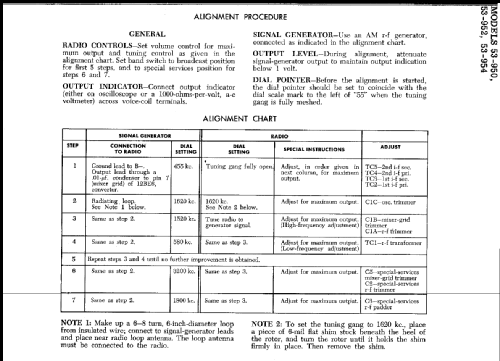

  • Rider's Perpetual, Volume 23 (last), covering up to 1954

 Collections | Museums | Literature

Collections

The model B950 is part of the collections of the following members.
