- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philco Radio & Television Corp. of Great Britain Ltd.; London
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 107448
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-229; 230-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 4 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: A535B MKll - Philco Radio & Television Corp
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.5 x 10 x 8 inch / 394 x 254 x 203 mm
- Notes
-

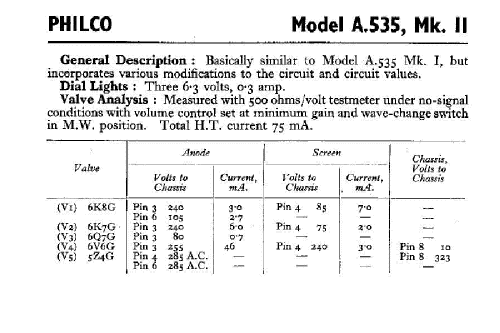

Dial lamps: 3 x 6,3V/0,3A
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Meyer Rochwerger. See "Data change" for further contributors.
