RP-1 Code 121 Wireless record player

RP-1 Code 121 Wireless record player; Philco, Philadelphia (ID = 483144) R-Player
Use red slider bar for more.
RP-1 Code 121 Wireless record player; Philco, Philadelphia (ID = 483144) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1938/1939 Type: Recorder and/or Player
Valves / Tubes 2: 6A7 84
Principle none
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RP-1 Code 121 Wireless record player - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes Model RP-1 code 121 is a wireless record player on a plinth without lid. It transmits to a nearby radio on 1500 kHz.
This model differs from RP-1 code 122, which transmits on 530 - 580 kHz.

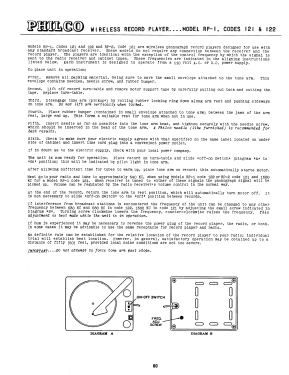

Circuit diagram reference Rider's Perpetual, Volume 10 = 1939 and before
Mentioned in Philco Radio 1928-1942, Ramirez
Literature/Schematics (1) Philco 1939 RMS Yearbook

Model page created by Thomas Albrecht. See "Data change" for further contributors.
