• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84783

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF115 BF115 AF121 AF121 AF121 AC125 AC126 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

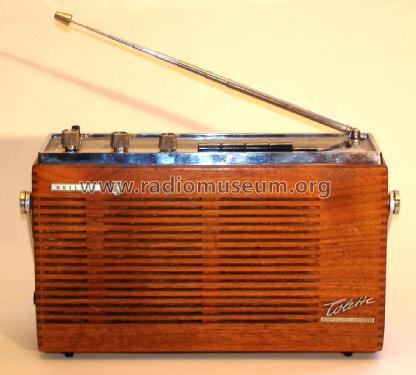

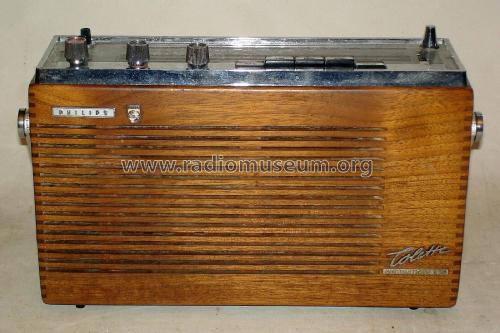

• Model: Colette P4D54T - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 315 x 195 x 90 mm / 12.4 x 7.7 x 3.5 inch

• Notes
• Über Autohalterung ER9000 an 6/12 V anschließbar.
  Parallelgerät zum Philips 22RP463.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
