Signal Generator E-200-C 6SJ7

Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL

Data
Forum
Pictures
Collections

  • Year
  • 1940
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 182116

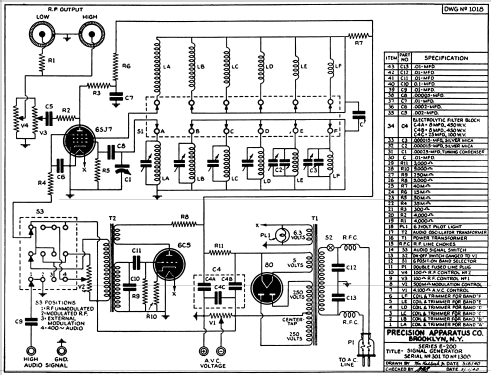

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Signal Generator E-200-C [6SJ7] - Precision Apparatus Co.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 310 x 270 x 155 mm / 12.2 x 10.6 x 6.1 inch

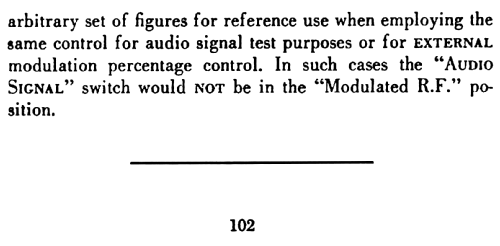

  • Notes
  • Analog Signal Generator Model E-200-C, made by Precision Apparatus Company, L.I., N.Y. It has six (6) ranges covering 90 khz to 60 MHz (up to 120MHz with harmonics). The line-cord has an Elmenco double-fused plug (like on EFJ Rangers). The steel case measures 12" W x 11" H x 6" D. See also the version E-200 - in this form and later forms - and see company description. There are also models with the tube 6AU6 instead of the 6SJ7.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Price in first year of sale
  • 71.00 USD
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
