54-C 7-pin tubes
PYE Canada, Ontario
- Country
- Canada
- Manufacturer / Brand
- PYE Canada, Ontario
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166417
1948 pye radio model 54C
back of set
RECONSTRUCTED LABEL

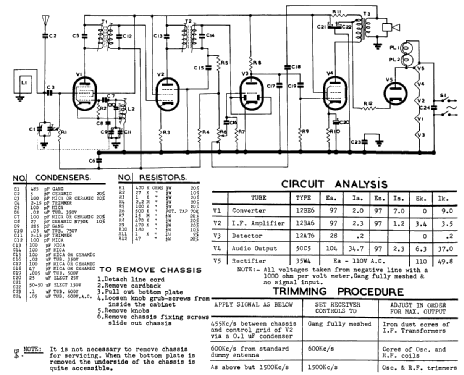

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 54-C [7-pin tubes] - PYE Canada, Ontario
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 9 x 7 inch / 305 x 229 x 178 mm
- Net weight (2.2 lb = 1 kg)
- 2.430 kg / 5 lb 5.6 oz (5.352 lb)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
