• Year
  • 1964
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 283041

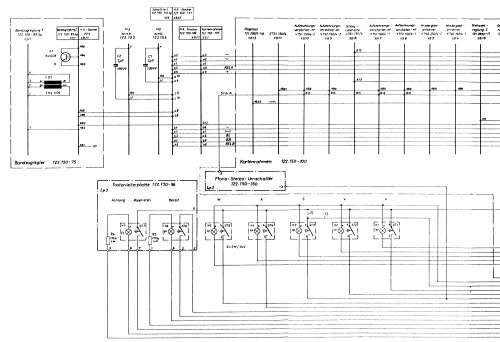

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Studio-Magnetbandgerät R722/1 - Rundfunk- und
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 600 x 255 x 425 mm / 23.6 x 10 x 16.7 inch
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
