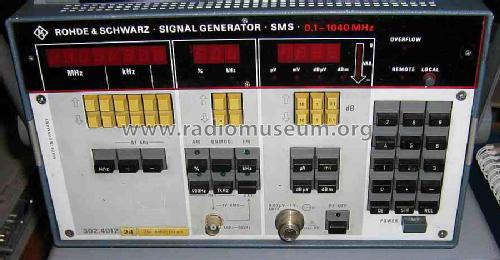

Signal Generator SMS 302.4012.26
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1980
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 115820
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
AFU-Eggenfelden
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 125; 220; 235 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Signal Generator SMS 302.4012.26 - Rohde & Schwarz, PTE; München
- Shape
- Rack
- Dimensions (WHD)
- 350 x 185 x 360 mm / 13.8 x 7.3 x 14.2 inch
- Notes
-
Universeller AM-FM-Synthesizer für Frequenzbereich von 0,1 bis 1040 MHz. Umfaßt alle Rundfunkbereiche von MW über KW bis UKW.
Nachfolgemodelle der SMS Serie sind:
- SMS 2 BN 372.2019.24 (0,1 bis 520 MHz)
- SMS 2 BN 372.2019.26 (0,1 bis 520 MHz, Stereo kompatibel)
- SMS 2 BN 372.2019.28 (0,1 bis 1040 MHz).
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Heinz LUCAS. See "Data change" for further contributors.
