• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1950/1951

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 6596

• • Brand: Schwer & Söhne, GmbH

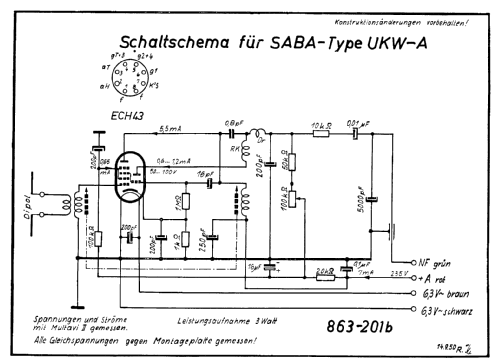

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECH43

• Main principle
• TRF with regeneration; Super Regenerativ

• Tuned circuits
• 2 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

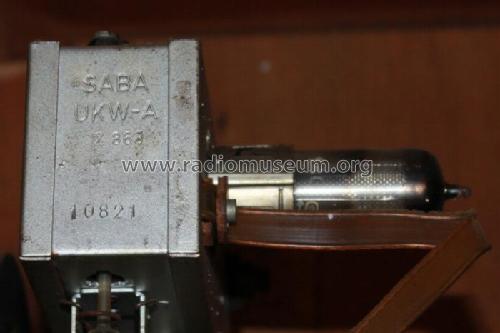

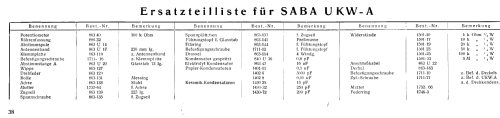

• Model: UKW-Einsatz UKW-A - SABA; Villingen

• Dimensions (WHD)
• 123 x 50 x 90 mm / 4.8 x 2 x 3.5 inch

• Notes

• Durch fest einstellbare Rückkopplung entdämpftes Audion mit HF-Vorstufe

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 27.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (5016)
