Ultra HiFi 9080 Stereo; SABA; Villingen (ID = 1715205) Radio
SABA; Villingen: Ultra HiFi 9080 Stereo [Radio] ID = 1715205 933x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ultra HiFi 9080 Stereo, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 34:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Ultra HiFi 9080 Stereo - SABA; Villingen
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 600 x 120 x 250 mm / 23.6 x 4.7 x 9.8 inch
Notes Ausgangsleistung: 2× 20 W (Sinus). Zwei Lautsprecherboxen (20×30×14 cm) im Lieferumfang.
Gehäuse: nussbaumfarben, mattweiss oder metallic-anthrazit.
Collectors' prices
Source of data Handbuch VDRG 1977/1978
Mentioned in Handbuch VDRG 1976/1977

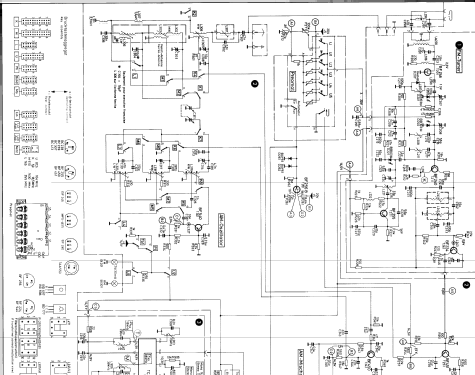

Literature/Schematics (1) -- Original-techn. papers. (SABA Service-Schaltbild "HiFi 137")
