Impulse Noise Reduction System 5000

Export


Country: United States of America (USA) Manufacturer/Brand: SAE Inc., Los Angeles
Year: 1976 Type: Miscellaneous (Other, Various)This is not a receiver but a device for a receiver like Audio amplifier, tape recorder etc.
Nicht oder noch nicht aufgeteilte Gerätschaften wie HF-Verstärker (oder -Vorsatz), Koppeleinrichtung, Antenne, Vorkreis, Sperr-, Selektions- oder Siebkreis, Umbausatz, Netzumspanner, Wechselrichter, Magnetophon (Tonbandgerät - auch Stahltonband oder -Draht), Plattenspieler, Drahtfunkempfänger, Fernbedienung, KW-UKW-oder Super-Vorsatz- oder Einbaugerät etc.
Mod.-ID = 122132 previous | Result List | next | New search for Radios etc. Schematics etc.: 0 (for members) Principle Audio-AmplificationAF (audio) amplification only, one, two or three stages etc.
Niederfrequenzverstärkung.
Meist als «Nachsatz» zu einem Empfänger verwendet, um das Tonsignal zu verstärken - z.B. für Lautsprecherwiedergabe statt Kopfhörer.

Power type and voltage Alternating Current supply (AC) / 240 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Trafo ist nicht immer mit Primär- undSekundärwicklungen versehen. Dadurch kann das Chassis ein gefährlichesPotential führen.

www.radiomuseum.org Model: Impulse Noise Reduction System 5000 Export Material Metal caseMetal case.
Caisse en métal.
Gerät, dessen Gehäuse aus Metall gefertigt ist. Es kann sich um verschiedenartige Metalle und Oberflächenbearbeitungen handeln. Ist es hingegen nur ein Chassis, so erhält das Gerät eine andere Bezeichnung.

Shape Tablemodel, with any shape - general.
Dimensions (WHD) 274 x 80 x 210 mm / 10.8 x 3.1 x 8.3 inch
Transistors 7:

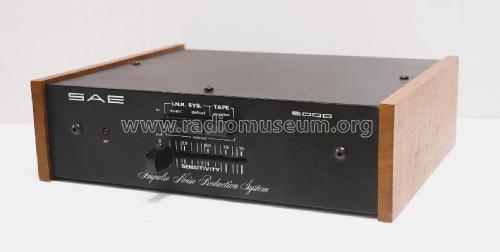

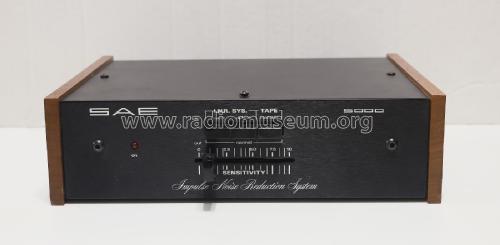

Notes Adjustable impulse noise detection and removal unit against clicks and pops on records. Removed noise is replaced by extrapolated musical information around the noise. The function needs basically a stereo signal. Monitor for removed noise.
Except of one BC237 the circuit has "secret" (OEM) semiconductors: 8 IC's, 4 FET and 2 silicon transistors.

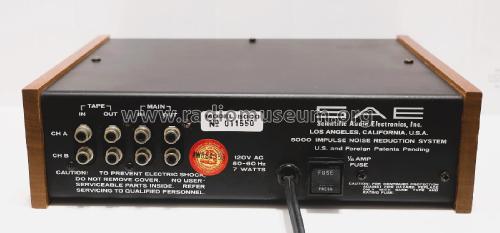

WARNING: This "Export"-version uses a 7.2k/10W ballast resistor in front of the standard US-transformer!

(Extra 19" rack mount panel available. Succeeded by model 5000A in 1980)

Net weight (2.2 lb = 1 kg) 2.1 kg / 4.6 lb
Source of data - - Data from my own collection

This model was suggested by Georg Richter.
