Stereo Cassette Deck SC-2000

Sansui Electric Co., Ltd.; Tokyo

  • Year
  • 1975/1976
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 130033

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 110; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck SC-2000 - Sansui Electric Co., Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 440 x 158 x 290 mm / 17.3 x 6.2 x 11.4 inch
  • Notes

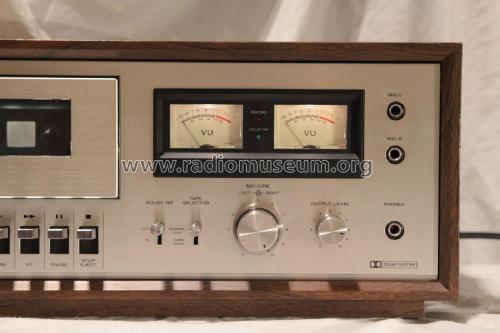

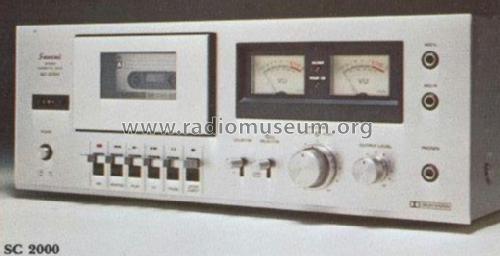

  • Sansui Stereo Cassette Deck SC 2000, silver-metallic front, standard tape: 30 - 13.000 Hz, CrO² tape: 30 - 15.000 Hz, Dolby NR; DIN, Chinch, Phono & 2 MIC-in terminals, 2 VU meters.
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
