• Country
• Germany

• Manufacturer / Brand
• Schaub und Schaub-Lorenz

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30901

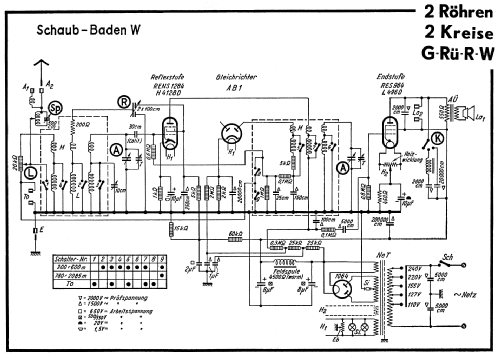

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1284 AB1 RES964 RGN1064

• Main principle
• TRF with diode detector; ZF/IF 1 kHz; 1 AF stage(s); Reflex

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

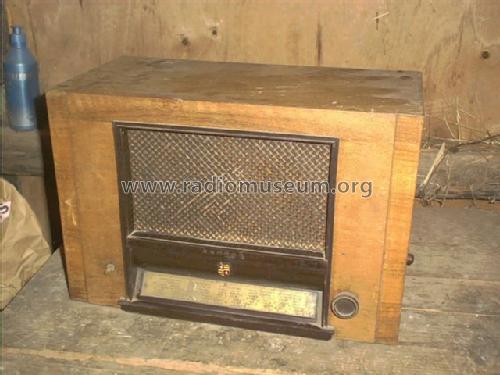

• Model: Baden 36W [Holz] - Schaub und Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 310 x 240 mm / 18.5 x 12.2 x 9.4 inch

• Notes
• Konstante Rückkopplung. Siehe auch Variante mit Bakelit-Gehäuse.

• Price in first year of sale
• 217.00

• Other Models

• Here you find 972 models, 828 with images and 690 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
