Receiver AD
Se-Ar-De (brand); Boston
- Country
- United States of America (USA)
- Manufacturer / Brand
- Se-Ar-De (brand); Boston
- Year
- 1923
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182911
-
- alternative name: Mitchell, R.; Boston
- Number of Tubes
- 1
- Valves / Tubes
- UV200
- Main principle
- TRF without regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org

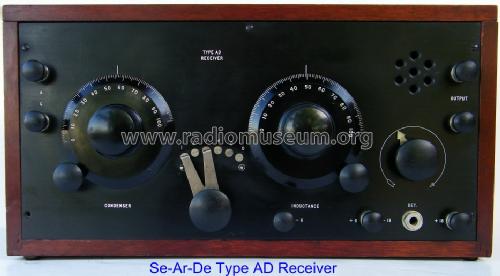

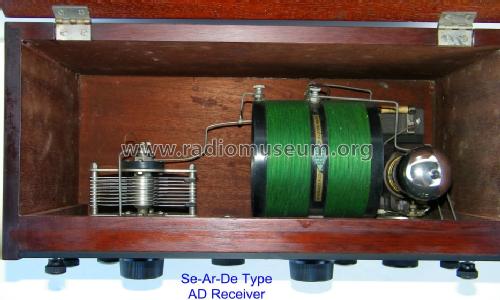

- Model: Receiver AD - Se-Ar-De brand; Boston
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 14.75 x 7.375 x 6.5 inch / 375 x 187 x 165 mm
- Notes
- SE-AR-DE Short Wave receiving sets are sold only in kit form. SE-AR-DE sets are designed to operate from 150-600 Meters. This kit sold for $28 in 1923 without a cabinet.
- Net weight (2.2 lb = 1 kg)
- 6 lb 0 oz (6 lb) / 2.724 kg
- Price in first year of sale
- 28.00 $
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
