• Year
  • 1952
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 112330

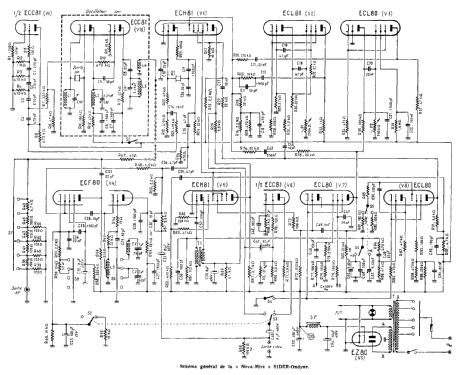

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

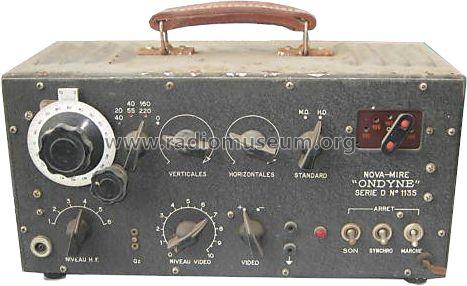

  • Model: Nova-Mire Ondyne Série D - Sider-Ondyne, Société
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 355 x 185 x 165 mm / 14 x 7.3 x 6.5 inch
  • Notes
  • Video, audio and synch signal generator for 441 and 819 lines TVs, RF modulator 20-40 MHz, 40-55 MHz, 160-220 MHz, video polarity switch.
  • Literature/Schematics (1)
  • -- Original prospect or advert (Radio Constructeur et Dépanneur Aout 1952)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
