• Country
• Japan

• Manufacturer / Brand
• Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115753

• • alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
  • Brand: Plata (brand)

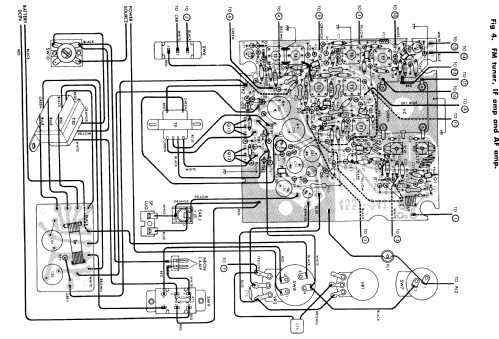

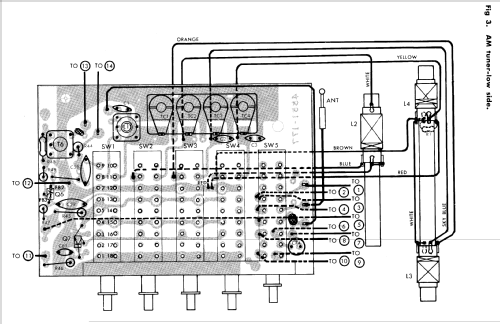

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120-240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

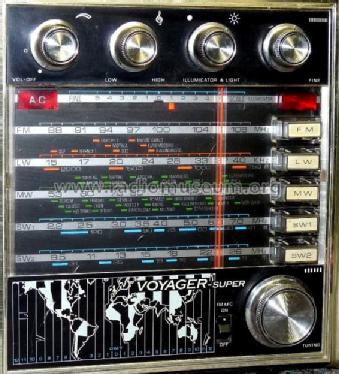

• Model: Voyager Super 14F912L - Silver Brand - Shin-Shirasuna

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 305 x 190 x 95 mm / 12 x 7.5 x 3.7 inch

• Notes
• 5 Band AM/FM All Transistor, Frequency Range: FM...87,5 - 108 MHz, LW...150 - 400 kHz, MW...510 - 1620 kHz, SW1...2,2 - 7,3 MHz, SW2...9,4 - 26,5 MHz

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

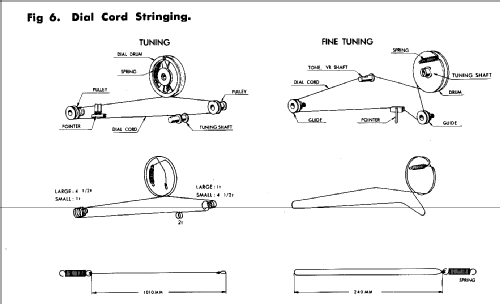

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.

• Other Models

• Here you find 166 models, 150 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
