FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D

ID = 74879

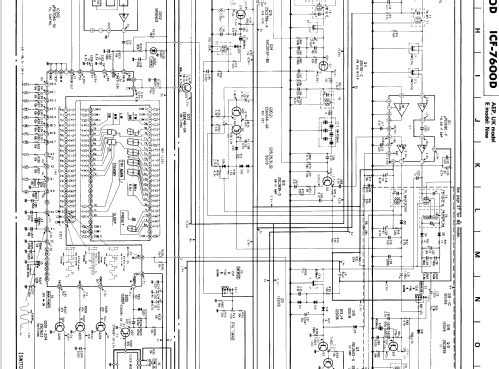

FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D; Sony; Tokyo (ID = 258483) Radio

FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D; Sony; Tokyo (ID = 258484) Radio

{gbW: "933", gbH: "659", mW: "500", mH: "353", kb: "93 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Martin Bösch (1)", ite: "1"} {gbW: "591", gbH: "438", mW: "500", mH: "370", kb: "143 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from RM Member (sID 467) (1)", ite: "1"} {gbW: "800", gbH: "522", mW: "500", mH: "326", kb: "104 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Salvador Galan-Ocaña (1)", ite: "1"} {gbW: "800", gbH: "698", mW: "429", mH: "375", kb: "117 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Salvador Galan-Ocaña (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "77 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Emile Stauber (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "94 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Emile Stauber (1)", ite: "1"} {gbW: "933", gbH: "700", mW: "500", mH: "375", kb: "101 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Emile Stauber (1)", ite: "1"} {gbW: "400", gbH: "300", mW: "400", mH: "300", kb: "77 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Giorgio Busletta (1)", ite: "1"} {gbW: "933", gbH: "570", mW: "500", mH: "305", kb: "61 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Helmut Arzt (1)", ite: "1"} {gbW: "933", gbH: "699", mW: "500", mH: "375", kb: "102 KB", notes: "For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo", title: "Sony; Tokyo FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D from Johann Nussbaum (1)", ite: "1"}

Next pictures

Use red slider bar for more.

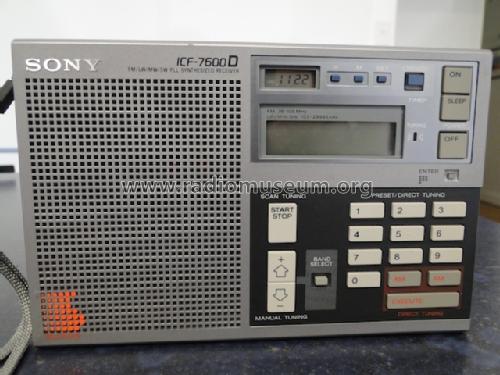

FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D; Sony; Tokyo (ID = 86563) Radio

Sony; Tokyo: FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D [Radio] ID = 86563 933x659

Select picture or schematic to display from thumbnails on the right and click for download.

For model FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D, Sony; Tokyo

Country:

Japan

Manufacturer / Brand:

Sony; Tokyo

Year: 1983–1987

Type: Radio - or past WW2 tuner

Semiconductors (the count is only for transistors)

40:

Principle	to an article Superhet, double/triple conversion
Wave bands	Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage	Dry Batteries / 2 x 1,5 & 4 x 1,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out	0.4 W (unknown quality)
from Radiomuseum.org	Model: FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D - Sony; Tokyo
Material	Modern plastics (no Bakelite or Catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	180 x 120 x 35 mm / 7.1 x 4.7 x 1.4 inch
Notes	International model: 153 - 29995 kHz, 76-108 MHz; german model: 153-26100 kHz, 88-108 MHz, no external antenna; AM, SSB (BFO, fine tuning between 5 kHz steps); digital readout 5 kHz, 10 memories, direct keypad frequency entry, clock / timer (identical to US-model ICF-2002). 4 ICs, 2 LSI, 40 Dioden, 1 LED. The antenna for broadcast and LW is a ferrite loopstick antenna inside. A common problem through usage is the break of the wire to the telescopic antenna for SW - which then still gives some result ... Two screws plus one in each battery housings need to be unscrewed only to open the set.
Net weight (2.2 lb = 1 kg)	0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale	560.00 DM
Collectors' prices	19 Collector prices (for members Radiomuseum.org)
External source of data	R.Lichte

Model page created by Martin Bösch. See "Data change" for further contributors.

All listed radios etc. from Sony; Tokyo
Here you find 2026 models, 1667 with images and 374 with schematics.

Collection of Salvador Galan-Ocaña (E)
Collection of Emile Stauber (CH)
Collection of William J Blanchflower (GB)
Collection of Sandor Selyem-Tóth (H)
Collection of Mike Melzer (AUS)
Collection of a member from D
Collection of Giorgio Busletta (I)
Collection of Helmut Arzt (D)
Collection of Wolfgang Lohrie (AUS)
Collection of Martin Bösch (CH)
Collection of Johann Nussbaum (D)
Collection of Jorge Eduardo Pinto-Cubillas (PE)

Forum contributions about this model

Sony; Tokyo: FM/LW/MW/SW PLL Synthesized Receiver ICF-7600D

Threads: 2 | Posts: 3

Hits: 2182 Replies: 0

sony: SONY ICF-7600D

Jorge Eduardo Pinto-Cubillas
19.Oct.09

sony: SONY ICF-7600D

Amigos Coleccionis y del DX

Solicito aquellos que tengan una radio sony ICF 7600D, una fotografia del interior de la radio especificamente de la parte de la placa o circuitos, agradecere mucho la publiquen.

Cordiales DX

Eduardo Pinto C.

Martin Bösch
19.Oct.09

Service Manual ICF-7600D

Hallo, maybe the service manual might be helpful to You, I would prefer sendung You the scan of the service manual then opening up my receiver - You might find all necessary informations.

The Service manual might be to large to send it as email, I could try to make it available as download from my website.

You could write me by personal mail using the link at the bottom of the page, 73 Martin

Hits: 2810 Replies: 0

sony: Sony ICF-7600D: Frequenzgrenzen erweitern

Martin Bösch
28.Sep.06

sony: Sony ICF-7600D: Frequenzgrenzen erweitern

Zwei Drahtbrücken auf dem "Switch Board" bewirken eine Einschränkung des Frequenzbereichs auf UKW und Kurzwelle auf die in den achziger Jahren gültigen Frequenzgrenzen.
Durch Entfernung der Drahtbrücken kann der Frequenzbereich auf den der internationalen Version erweitert werden.

Frequenzbereiche erweitern am Sony ICF-7600D

Zeilensprung geändert.
