• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 241408

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AR5 5MK9

• Number of Transistors
• 4

• Semiconductors
• 2T64 2T65 2T65 2T65

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

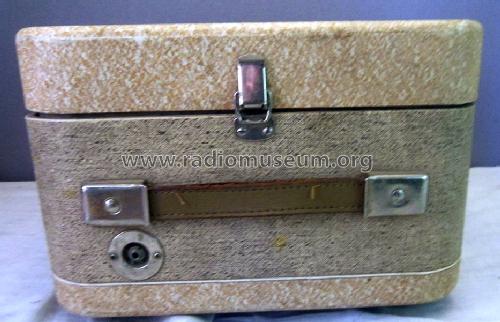

• Model: Transistor Tapecorder 101 - Sony Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 175 x 270 mm / 13 x 6.9 x 10.6 inch

• Notes

• Sony Portable Transistorized Reel To Reel Tape Player / Recorder Model Transistor Tapecorder 101.
  Power Consumption 45 VA (117VAC)
  Made in Japan.

  9.5 (100 - 7.000 Hz) & 19 (50 - 10.000 Hz) cm/s.

  Japanese domestic version: 90 - 105 V.

  65 VA power consumption.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 29,800.00 ¥

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
