Concerton V21

• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120548

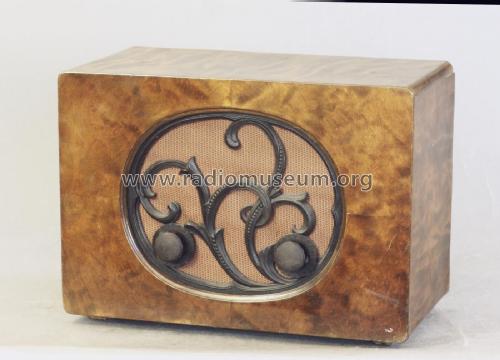

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• E452T E463 506

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Concerton V21 - Stern & Stern Concerton /

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 325 x 235 x 170 mm / 12.8 x 9.3 x 6.7 inch

• Notes

• Also exported to Belgium.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 135.00 SEK

• Mentioned in
• Radio Home N°202 page 89 (09/1933)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
