Luxomat 2001

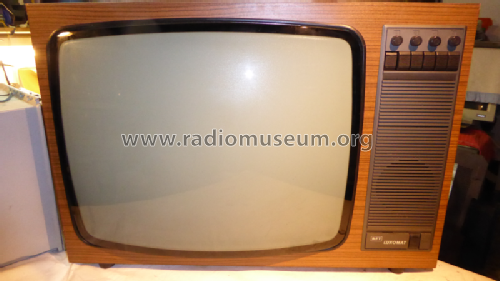

Stern-Radio Staßfurt: Luxomat 2001 [Television] ID = 544690 933x692
For model Luxomat 2001, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:

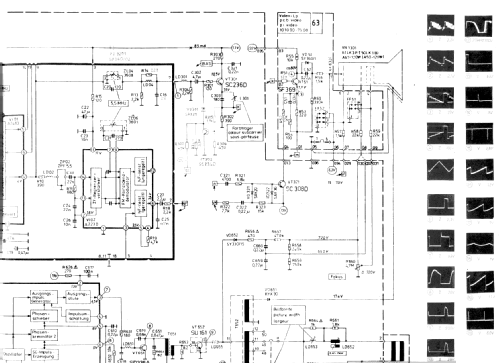

Bild aus org.Serviceunterlage
|
|
|
|
alternative name
|
Fernsehgerätewerk Staßfurt
|
|
Year:
1985
|
Type: Television Receiver (TV) |
| Valves / Tubes |
1:
B61G1
|
| Semiconductors (the count is only for transistors) |
17:
|
| Principle |
Super-Heterodyne (Super in general); IF-Freq 38900 kHz |
| Wave bands |
Wave Bands given in the notes. |
| Details |
|
| Power type and voltage |
Alternating Current supply (AC) / 220 Volt |
| Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out |
4 W |
| from Radiomuseum.org |
Model: Luxomat 2001 - Stern-Radio Staßfurt, VEB, RFT |
| Material |
Various materials |
| Shape |
Tablemodel, low profile (big size). |
| Dimensions (WHD) |
720 x 490 x 390 mm / 28.3 x 19.3 x 15.4 inch |
| Notes |
61cm S/W TV mit 6 Festsendertasten für VHF I+III/UHF IV +V nach B/G. 40 Watt Leistungsaufnahme. Schaltnetzteil, 6 Schaltkreise, A209K, A223, A241, A255D und A210K. |
| Net weight (2.2 lb = 1 kg) |
24 kg / 52 lb 13.8 oz (52.863 lb) |
| Source of data |
-- Collector info (Sammler) / |
Model page created by . See "Data change" for further contributors.
