Novamat 6007
Stern-Radio Staßfurt: Novamat 6007 [Television] ID = 548678 160x116
For model Novamat 6007, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:

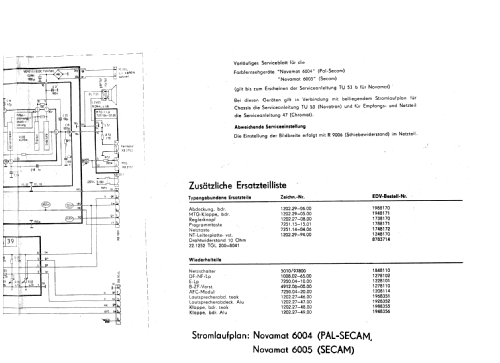

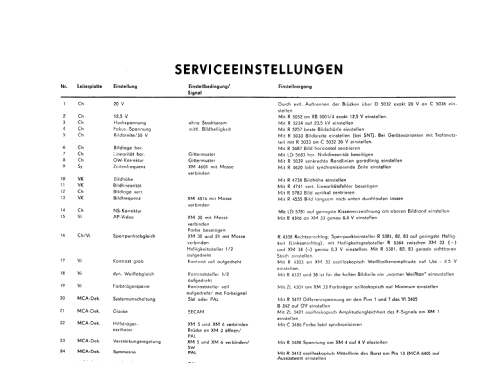

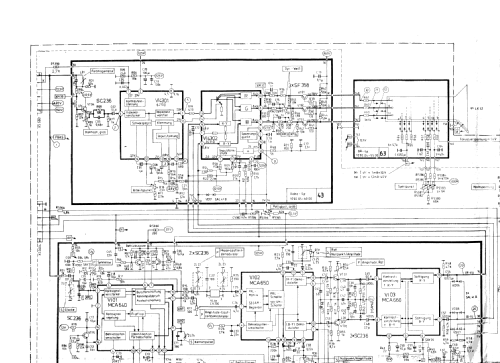

RFT Serviceanleitung 53c aus Juli 1983
|
|
|
|
alternative name
|
Fernsehgerätewerk Staßfurt
|
|
Year:
1984
|
Type: Television Receiver (TV) |
| Valves / Tubes |
1:
61lk3z
|
| Semiconductors (the count is only for transistors) |
48:
|
| Principle |
Super-Heterodyne (Super in general); IF-Freq 38900 kHz |
| Wave bands |
Wave Bands given in the notes. |
| Details |
|
| Power type and voltage |
Alternating Current supply (AC) / 220 Volt |
| Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out |
3 W |
| from Radiomuseum.org |
Model: Novamat 6007 - Stern-Radio Staßfurt, VEB, RFT |
| Material |
Wooden case |
| Shape |
Tablemodel, low profile (big size). |
| Dimensions (WHD) |
750 x 520 x 520 mm / 29.5 x 20.5 x 20.5 inch |
| Notes |
61cm SECAM TV mit elektronischem CCIR B/G VHF-/UHF Band IV & V Tuner. 6 Programmspeicherplätze, frontseitiger Tonband- und Kopfhöreranschluß, vereinfachte Nachrüstung für den Anschluß von Videorecordern mit HF-Ausgang, Verwendung eines Schaltnetzteiles. Einsatz eines abgerüsteten MCA- Decoders, Vorstellung auf der Leipziger Frühjahrsmesse 1983. |
| Net weight (2.2 lb = 1 kg) |
46 kg / 101 lb 5.1 oz (101.322 lb) |
| Source of data |
-- Original-techn. papers. / |

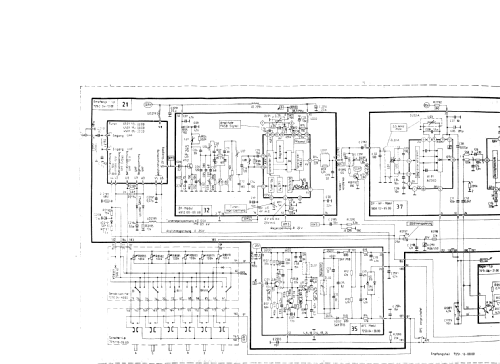

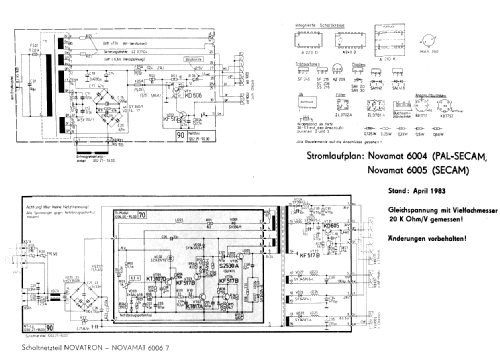

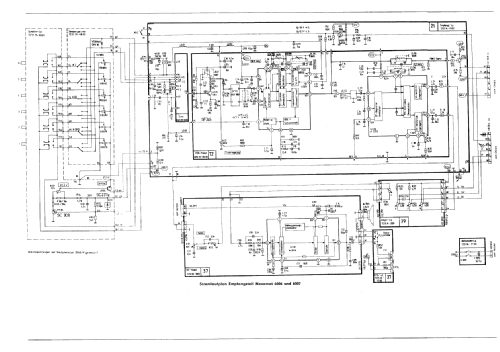

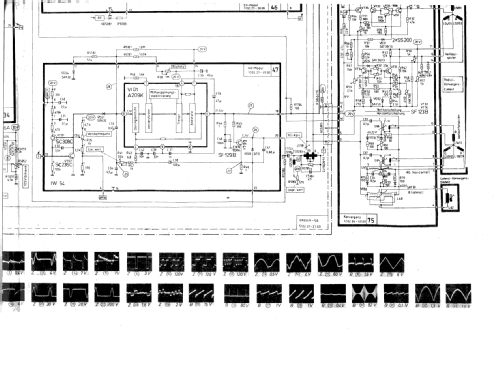

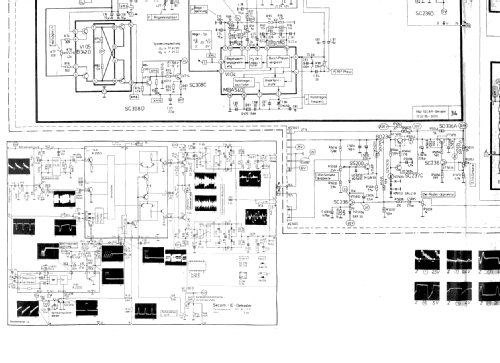

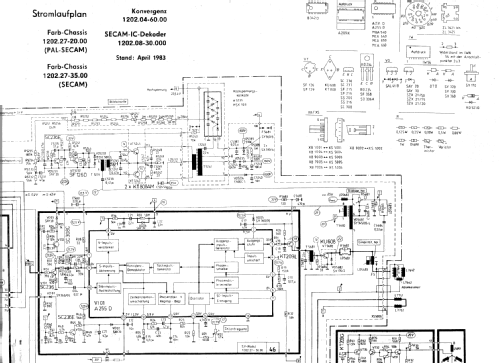

| Literature/Schematics (1) |
Service- DVD vom Funkverlag B. Hein. |
