• Year
  • 1974–1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 74737
    • Brand: ReVox (brand)

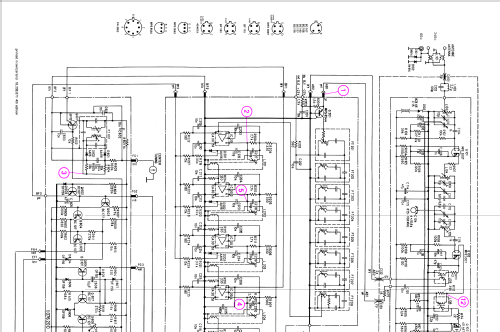

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 43
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 10700 kHz
  • Tuned circuits
  • 12 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Revox A76 Mk III - Studer GmbH, Willi ReVox;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 415 x 160 x 245 mm / 16.3 x 6.3 x 9.6 inch
  • Notes
  • Dritte und letzte Ausgabe des Revox A76 Tuners, intern mit A76 Mk III bezeichnet.
    Kennzeichnend sind die nunmehr silbernen Tasten, die Skala ist weiss bedruckt und der Revox Schriftzug in blau auf matt gebürsteter Blende gedruckt.

    Siehe auch Revox A76 (1968) und Revox A76 Mk II (ab 1971).

    Optisch passender Verstärker ist Revox A78 Mk II.

  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • External source of data
  • HiFi-Jahrbuch 8, Verlag G. Braun
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Lars Brötje. See "Data change" for further contributors.
