Huldra 8-55

Tandberg Radio; Oslo

Data
Forum
Pictures
Collections

  • Year
  • 1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71257

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • 20
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60Hz; 115; 130; 150; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 20 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Huldra 8-55 - Tandberg Radio; Oslo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 19.75 x 8.625 x 10 inch / 502 x 219 x 254 mm
  • Notes

  • Tandberg 4-Band Stereo Receiver Model Huldra 8-55

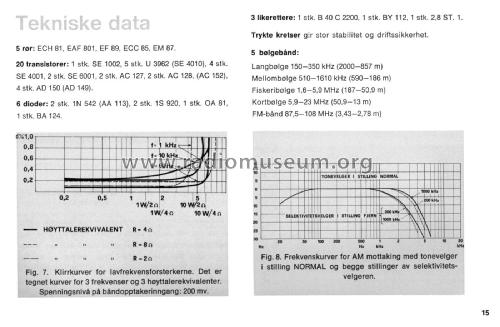

    Tuning range:
    FM 87,5 - 108 MHz (FM Multiplex, AFC)
    MW 510 - 1610 kHz
    LW 150 - 350 kHz
    SW 5,9 - 23 MHz
    Coastal Wave 1,6 - 5,9 MHz
    Power output: 10 watts per channel into 4Ω (stereo)
    Frequency response: 20Hz to 20kHz
    Finish: Rosewood, Siamese Teak
    Power Consumption max. 85 Watts

    Semiconductors:
    20x transistors, 6x diodes, 3x rectifiers
    Valve complement:
    5 x tubes

    See also:
    Tandberg Huldra 8-56 (incorporates 2 HiFi loudspeakers 113/106)

  • Price in first year of sale
  • 1,375.00 NKr.
  • Source of data
  • -- Original prospect or advert
  • Mentioned in
  • - - Manufacturers Literature (Instruction/Owners Manual)
  • Author
  • Model page created by Ernst Rykkje. See "Data change" for further contributors.
