Integrated Stereo Amplifier SU-700

Integrated Stereo Amplifier SU-700; Technics brand (ID = 1474775) Ampl/Mixer Integrated Stereo Amplifier SU-700; Technics brand (ID = 1474776) Ampl/Mixer
Use red slider bar for more.
Integrated Stereo Amplifier SU-700; Technics brand (ID = 1474775) Ampl/Mixer
Technics brand: Integrated Stereo Amplifier SU-700 [Ampl/Mixer] ID = 1474775 920x220
Select picture or schematic to display from thumbnails on the right and click for download.
For model Integrated Stereo Amplifier SU-700, Technics (brand)

Country:  Japan
Manufacturer / Brand:  Technics (brand)
Year: 1986/1987 Type: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (undistorted)
from Radiomuseum.org Model: Integrated Stereo Amplifier SU-700 - Technics brand
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 86 x 240 mm / 16.9 x 3.4 x 9.4 inch
Notes

Integrated Stereo Amplifier with 60 W RMS per channel into 8 ohms (40 Hz - 20 kHz).

Inputs: Phono, Tuner, CD/AUX, Tape 1, Tape 2/EXT. Connectors for main and remote pair of speakers. Switchable impedance 4 - 6 Ohms and 8 - 16 Ohms.

"New Class A" operation. Available in different colours.

Different power supply variants:

  • Australia: 240 V, 60/60 Hz
  • continental Europe: 220 V, 50/60 Hz
  • others: 110; 127; 220; 240, 50/60 Hz.



Net weight (2.2 lb = 1 kg) 5.312 kg / 11 lb 11.2 oz (11.7 lb)

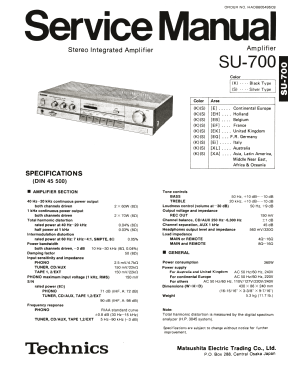

Source of data -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
