Constant Amplitude Signal Gen. 191

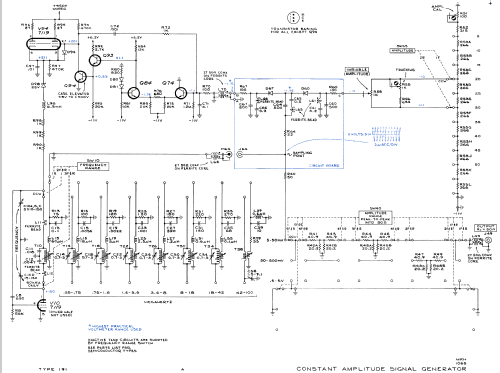

Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 1162004) Equipment

Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 1162005) Equipment

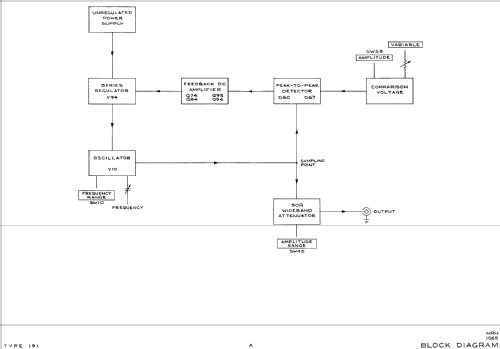

Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 1162006) Equipment

Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 1162007) Equipment
Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 548572) Equipment
Use red slider bar for more.
Constant Amplitude Signal Gen. 191; Tektronix, Portland (ID = 548572) Equipment
Tektronix, Portland: Constant Amplitude Signal Gen. 191 [Equipment] ID = 548572 728x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Constant Amplitude Signal Gen. 191, Tektronix, Portland, Oregon:
Tektronix Catalog 1969

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix, Portland, Oregon
Year: 1966 Type: Service- or Lab Equipment
Valves / Tubes 2: 7119
Semiconductors (the count is only for transistors) 6:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Constant Amplitude Signal Gen. 191 - Tektronix, Portland, Oregon
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 228 x 171 x 400 mm / 9 x 6.7 x 15.7 inch
Notes Frequenzbereich: 0,35...100 MHz und Festfrequenz 50 kHz. Gerät dient zur Überprüfung des Frequenzganges vom X- und Y-Verstärker eines Oszillografen.

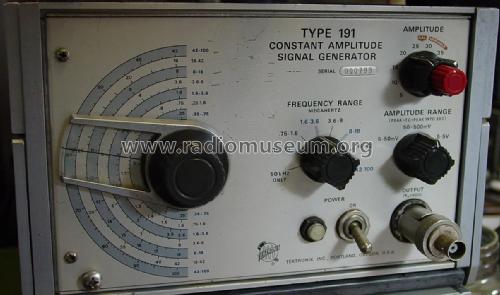

The Tektronix Type 191 Constant-Amplitude Signal Generator produces sine waves whose amplitude remains constant as the frequency is varied, provided the load limitations of the instrument are not exceeded. Front-panel controls indicate the peak-to-peak voltage of these sine waves at the input to a 50 ohm load.
This instrument is useful for making frequency-response measurements of broadband devices operating in the frequency range from 350 kilohertz to 100 meghertz.
The characteristics apply over an ambient temperature range of 0° C to +50° C. Warm-up time for the given accuracies is 5 minutes at 25° C ±5° C.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 695.00 $
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
