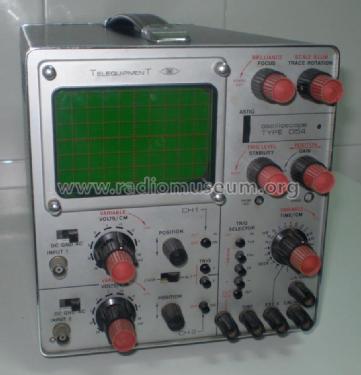

Oscilloscope D54

Telequipment Ltd.; London

  • Year
  • 1969
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 146945

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 40
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 100-250 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Oscilloscope D54 - Telequipment Ltd.; London
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 210 x 245 x 445 mm / 8.3 x 9.6 x 17.5 inch
  • Notes
  • Zweikanaloszilloskop, Bandbreite 10 MHz; auch als D54R im Querformat.
  • Net weight (2.2 lb = 1 kg)
  • 9.3 kg / 20 lb 7.8 oz (20.485 lb)
  • Source of data
  • -- Original-techn. papers.
  D54 Service Manual courtesy of guest Leif Oskar Zetterstrøm 1356 KB
  • Documents regarding this model
  • Author
  • Model page created by Joachim Glüder. See "Data change" for further contributors.
