• Year
  • 1953–1957
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 77991
    • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Main principle
  • TRF with diode detector; 2 AF stage(s)
  • Tuned circuits
  • 11 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 120/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

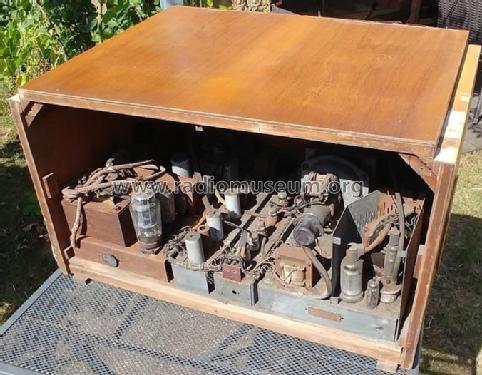

  • Model: 4001A - Tesla; Praha, Bratislava etc.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 660 x 395 x 525 mm / 26 x 15.6 x 20.7 inch
  • Notes
  • Produced in slightly modified versions: 4001A-b, -c, c1, c2, c3.

    Bildrohr: 25QP20 (25cm rund, nutzb. Fläche 15x20cm). Geradeaus-Empfänger, fest auf 48,5MHz-56,5MHz (~Ch 1) abgeglichen. Ton-ZF 6,5MHz (Intercarrier, OIRT-Norm). Direkte Synchronisierung auch für Horizontal-Ablenkung.
    Zusatz-HF-Vorstufe mit 2x 6F32 optional.

    1. FS-Gerät der Tschechoslowakei zum Fernsehstart 1.5.1953!

    Zur Vergrößerung des ziemlich kleinen Bildes wurde eine wassergefüllte Linse aus Plexiglas geliefert. Wasserfüllung 10 Liter, die Bildgröße konnte man wählen (Fokus - Entfernung der Linse vom FS).

  • Net weight (2.2 lb = 1 kg)
  • 37 kg / 81 lb 8 oz (81.498 lb)
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
