- Country
- Japan
- Manufacturer / Brand
- Kenwood, Trio-Kenwood Inc.; Komagane
- Year
- 1980
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 89451
-
- alternative name: Trio Corp.
- Brand: Jennen
RICOFUNK-Katalog 2008
Prospectus des années 80
Prospectus des années 80

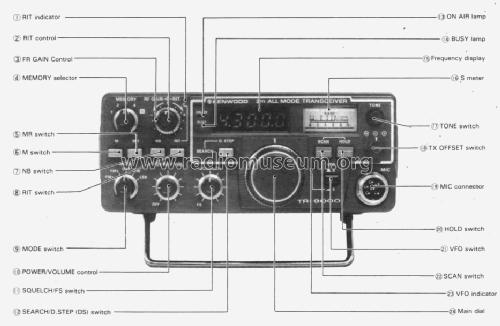

Instruction Manual 1980
Instruction Manual 1980
TR-9000 auf der System Base BO-9A

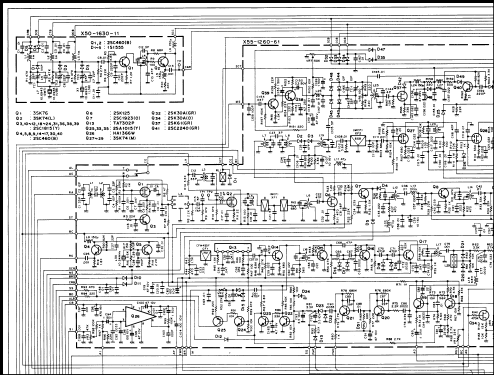

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 104
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 10695/455 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: TR-9000 - Kenwood, Trio-Kenwood Inc.;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 170 x 68 x 234 mm / 6.7 x 2.7 x 9.2 inch
- Notes
-
ICs: 12
Kenwood Mobil-VHF-Transceiver TR-9000.
Frequency range: 144-146 MHz; Modes: SSB, CW, FM; 5 memories; Pout: 10 W.
Optional power supply: PS-20.
Optional System Base BO-9.
- Mentioned in
- RICOFUNK-Katalog 1980
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
