Wireless Abonent Radio

Vilniaus Vingis company; Vilnius

  • Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89512

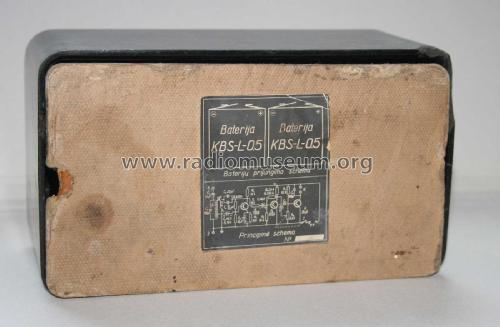

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Semiconductors
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Dry Batteries / 2 x 4,5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 0.05 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Wireless Abonent Radio - Vilniaus Vingis company;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 149 x 72 x 83 mm / 5.9 x 2.8 x 3.3 inch
  • Notes

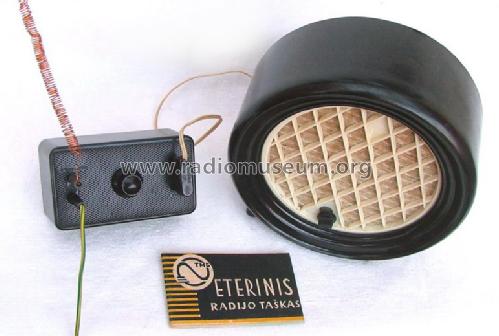

  • Radio set used in rural areas. Tuned for one fixed radio station in MW. Visible notes on set in lithuanian language - "aerial, earth, loudspeaker". Used separate laudspeaker.
  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
