AM/FM Pocket Radio 250

AM/FM Pocket Radio 250; First Austria, (ID = 785928) Radio AM/FM Pocket Radio 250; First Austria, (ID = 785923) Radio
AM/FM Pocket Radio 250; First Austria, (ID = 785925) Radio AM/FM Pocket Radio 250; First Austria, (ID = 785924) Radio
AM/FM Pocket Radio 250; First Austria, (ID = 785927) Radio AM/FM Pocket Radio 250; First Austria, (ID = 785929) Radio
AM/FM Pocket Radio 250; First Austria, (ID = 785930) Radio
Use red slider bar for more.

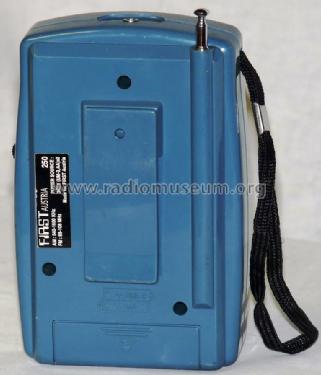

AM/FM Pocket Radio 250; First Austria, (ID = 785928) Radio
First Austria,: AM/FM Pocket Radio 250 [Radio] ID = 785928 584x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Pocket Radio 250, First Austria, Timetron; Wien

Country:  Austria
Manufacturer / Brand:  First Austria, Timetron; Wien
Year: 1994 ?? Category: Broadcast Receiver - or past WW2 Tuner
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: AM/FM Pocket Radio 250 - First Austria, Timetron; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 90 x 133 x 45 mm / 3.5 x 5.2 x 1.8 inch
Notes Pocket Radio, made for FIRST Austria. Wellenbereiche: UKW 88...108 MHz; MW 540...1600 kHz. Teleskopantenne (47 cm). Ferritstab (4cm). Kopfhöreranschluß über Klinkenbuchse (3,5 mm). Alle Funktionen in einem IC (Sony CXA 1191M). Wahlweise Verwendung mit Handschlaufe oder Gürtelspange.
Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)

Model page created by Peter Roggenhofer. See "Data change" for further contributors.
