Electromuse A46

Electromuse A46; Valco Manufacturing (ID = 816491) Ampl/Mixer Electromuse A46; Valco Manufacturing (ID = 816492) Ampl/Mixer
Electromuse A46; Valco Manufacturing (ID = 816493) Ampl/Mixer Electromuse A46; Valco Manufacturing (ID = 816494) Ampl/Mixer

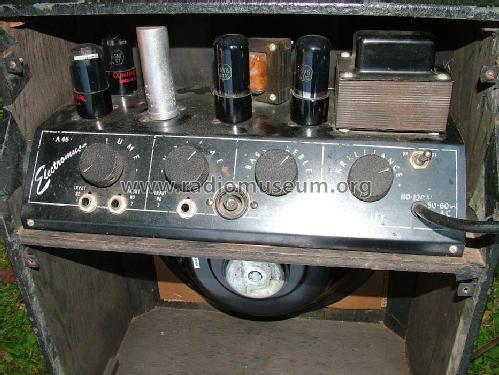

Electromuse A46; Valco Manufacturing (ID = 816495) Ampl/Mixer
Use red slider bar for more.
Electromuse A46; Valco Manufacturing (ID = 816491) Ampl/Mixer
Valco Manufacturing: Electromuse A46 [Ampl/Mixer] ID = 816491 572x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electromuse A46, Valco Manufacturing Co.; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  Valco Manufacturing Co.; Chicago
Brand

Oahu
Year: 1951 ? Type: Audio Amplifier or -mixer
Valves / Tubes 5: 6SL7 6SN7 6V6 6V6 5Y3
schematic requested
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Electromuse A46 - Valco Manufacturing Co.;
Material Leather / canvas / plastic - over other material
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 500 x 400 x 230 mm / 19.7 x 15.7 x 9.1 inch
Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)

Model page created by Hannes Gerber. See "Data change" for further contributors.

All listed radios etc. from Valco Manufacturing Co.; Chicago
Here you find 9 models, 9 with images and 6 with schematics.
