D1002 Globetrotter Truetone

D1002 Globetrotter Truetone ; Western Auto Supply (ID = 760674) Radio

D1002 Globetrotter Truetone ; Western Auto Supply (ID = 760675) Radio
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 398157) Radio D1002 Globetrotter Truetone ; Western Auto Supply (ID = 398159) Radio
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 398160) Radio D1002 Globetrotter Truetone ; Western Auto Supply (ID = 398158) Radio
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219979) Radio D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219980) Radio
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219983) Radio D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219984) Radio
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219986) Radio D1002 Globetrotter Truetone ; Western Auto Supply (ID = 1219987) Radio
Use red slider bar for more.
D1002 Globetrotter Truetone ; Western Auto Supply (ID = 398157) Radio

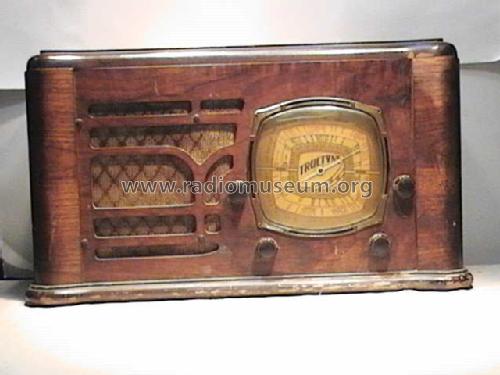

Western Auto Supply: D1002 Globetrotter Truetone [Radio] ID = 398157 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model D1002 Globetrotter Truetone, Western Auto Supply Co. (Truetone); Kansas City (MO):
Q = ebay objnr : 190181841848

Country:  United States of America (USA)
Manufacturer / Brand:  Western Auto Supply Co. (Truetone); Kansas City (MO)
Year: 1941 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K8G 6K7G 6Q7G 6C5G 6F6G 6F6G 80
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: D1002 Globetrotter Truetone - Western Auto Supply Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 22 x 11.75 x 9 inch / 559 x 298 x 229 mm
Notes Uses push-pull output
Collectors' prices
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Mentioned in Machine Age to J.Vol.2 Stein 97 (page 305.)
Literature/Schematics (1) Riders 13-52, 53

All listed radios etc. from Western Auto Supply Co. (Truetone); Kansas City (MO)
Here you find 684 models, 372 with images and 624 with schematics for wireless stes etc. French TSF for Télégraphie sans fil.
