Komar (Generic Model) R-855 {Р-855}

Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 1739643) TRX
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318981) TRX Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318982) TRX
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318983) TRX Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318984) TRX
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318985) TRX Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318986) TRX
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318987) TRX Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318988) TRX
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318989) TRX Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 1454152) TRX
Use red slider bar for more.
Komar R-855 {Р-855}; Yaroslavl Radiowork' (ID = 318981) TRX
Yaroslavl Radiowork': Komar R-855 {Р-855} [TRX] ID = 318981 418x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model Komar (Generic Model) R-855 {Р-855}, Yaroslavl Radiowork's Corporation, Yaroslavl:

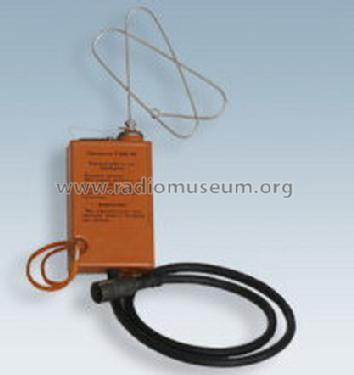

in photo new-look model, about 1995-99. New antenna variant.

Country:  Soviet Union
Manufacturer / Brand:  Yaroslavl Radiowork's Corporation, Yaroslavl
Year: 1959 Category: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 1Ж29Б
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 8,5 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Komar R-855 {Р-855} - Yaroslavl Radiowork's
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 130 x 68 x 32 mm / 5.1 x 2.7 x 1.3 inch
Notes Current FM aircraft emergency transceiver. Producet by other Russia manufacturers too. Comunication or auto SOS signal possible.
Primarily, models R-855, R-855-2M, R-855U produced with micro tubes 1j29b. Later, R-855UM, R-855A1, R-855A2 with transistors and IC.
Only one fixed 121,5 MHz radio frequency in sets (for long time). But new models can be with - 121,5; 243 or 114,583 MHz.
Many modernize and package variants - inflatable antenna, set in airman suit etc. Start in 1959 and non stop.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Mentioned in -- Collector info (Sammler)

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
