Koncert M3201SD

Koncert M3201SD; Unitra ZRK, Zaklady (ID = 1457732) R-Player
Use red slider bar for more.
Koncert M3201SD; Unitra ZRK, Zaklady (ID = 1457732) R-Player

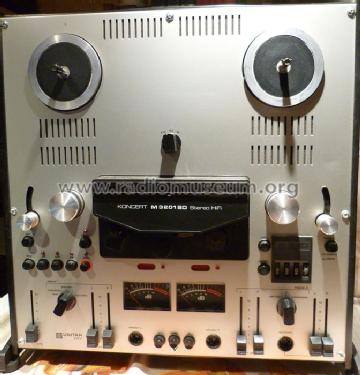

Unitra ZRK, Zaklady: Koncert M3201SD [R-Player] ID = 1457732 672x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Koncert M3201SD, Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka

Country:  Poland
Manufacturer / Brand:  Unitra ZRK, Zaklady Radiowe im. M. Kasprzaka
Brand

Unitra
Year: 1979 ? Type: Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Koncert M3201SD - Unitra ZRK, Zaklady Radiowe im
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 464 x 461 x 173 mm / 18.3 x 18.1 x 6.8 inch
Notes 3 Bandgeschwindigkeiten 4,76cm/s, 9,53cm/s und 19,1cm/s.
Frequenzgang bei 4,76cm/s 30 - 13000Hz und bei 19,1cm/s 30 - 22000Hz.
Max Spulengröße 26,5cm.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data - - Manufacturers Literature

Model page created by a member from D. See "Data change" for further contributors.
