For model 12S568E 12-S-568-E Ch=012A1, Zenith Radio Corp.; Chicago, Illinois:

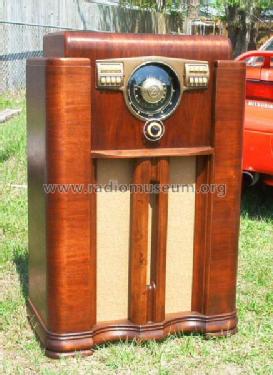

Zenith 12-S-568E(1940) copy from Ebay seller scoobygz

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1940 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 1232 7B5 6K7G 6J5G 6J5G 6J5G 6J5G 6J5G 6AC5G 6AC5G 5Y4G 6AE7GT
Principle Superhet with RF-stage; ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 inch = 35.6 cm
Power out 14 W (unknown quality)
from Radiomuseum.org Model: 12S568E 12-S-568-E Ch=012A1 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 28 x 41 x 14.6 inch / 711 x 1041 x 371 mm
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Zenith The Glory Years, Cones,03

All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
