392A; Zenith Radio Corp.; (ID = 219017) Radio
392A; Zenith Radio Corp.; (ID = 156186) Radio
Use red slider bar for more.
392A; Zenith Radio Corp.; (ID = 156186) Radio
Zenith Radio Corp.;: 392A [Radio] ID = 156186 800x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 392A, Zenith Radio Corp.; Chicago, Illinois:

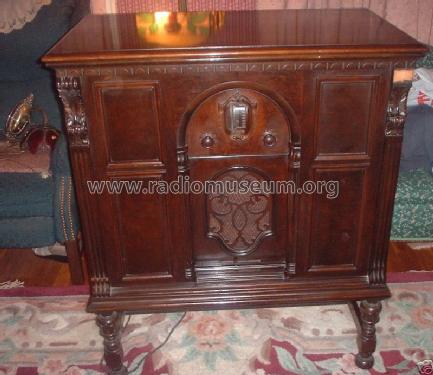

392-A (1929) ebay seller zj97

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1929 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 27 27 27 27 27 27 26 10 81 81
Principle TRF without reaction (non reg.dir.receiver)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 392A - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Notes

Automatic tuning; Single dial (primary tuning knob); 25cycle mains;

Price in first year of sale 510.00 $
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Set Socket Layout 1921 to 1935, RCA
